| Product Information |
Not just added value, an added edge for digital printing professionals.

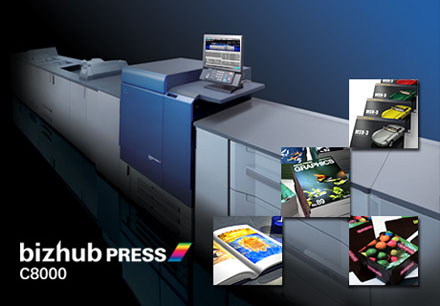

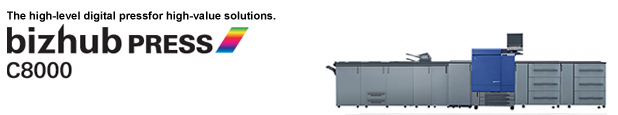

Introducing the new bizhub PRESS C8000, the next-generation flagship model that holds unlimited digital printing potentials to meet the high-level needs of professionals. |
|
|
 |
- High image quality and definition nearly equal to offset printers, achieved with the further advanced S.E.A.D. II image processing technology
- Outstanding image retention and stability through the pursuit of consistently beautiful quality from the first print to the last
- More business opportunities with enhanced media handling
- High productivity to meet short runs with ease
- High reliability and durability for professional confidence
- High performance, productivity and added value with various in-line post-processing finishing options
|
 |
| |
| Features |
| High image quality nearly equal to offset printers |
- S.E.A.D. II – a condensation of the latest image-processing technologies
- 1,200 dpi 8-bit data processing and 1,200 dpi x 1,200 dpi high precision printouts
- Simitri HD+ toner – a combination of high quality images and high productivity
- New aluminium die-cast laser unit
- IDC sensors for real-time colour density adjustments
- New gradation correction with colour density control
- New density balance adjustment function for consistently stable densities
|
| |
| New potentials for the printing business |
- Maximum of 350 g/m2 thick paper compatibility
- Up to 500 types of paper profiles
- Air suction belt feeding mechanism for sure paper feeding for a variety of media
- Maximum paper size and printing area for printing full crop marks on A3 paper
- A hybrid decurling mechanism that significantly reduces paper curls
- ICE (Inter-cooler Curl Eliminator)* for a surer post-processing workflow
- Maximum 80 ppm high-speed colour printing (A4)
- 70 ppm (A4) and automatic duplex printing for thick paper up to 300 g/m2
- Maximum 10,760-sheet paper capacity
|
| |
| Solid and flexible |
- Highly rigid frame, chassis and parts, and long-life units and consumables
- High precision duplex registration skew correction for a wide variety of paper
- New dual fusing system for a variety of paper types
- Significantly reduced downtime with O.R.U.M. (Operator Replaceable Unit Management)
- Layout-free large 15-inch colour LCD display
- Notifications through voice guidance
- New IC-306 image controller for a wide variety of digital on-demand printing
- IC-307 image controller – advanced digital printing for commercial printers
- IC-601 image controller – compact with high connectivity to the main unit
|
| |
| Various in-line post-processing system options |
- Perfect binding, saddle stitching, folding and more in a single system
|
| |
| Technologies |
- IDC sensors for real-time colour density adjustments
- New gradation correction with colour density control
- Air suction belt feeding mechanism for sure paper feeding for a variety of media
- ICE (Inter-cooler Curl Eliminator)* for a surer post-processing workflow
- High precision duplex registration skew correction for a wide variety of paper
- New dual fusing system for a variety of paper types
|
| |
| Specifications |
| bizhub PRESS C8000 General Specifications |
| Model Name |
bizhub PRESS C8000 |
| Type |
Console |
| Colour Support |
Full colour |
| Resolution |
Scan: 600 × 600dpi (option)
Print: 1,200 (equivalent to 3,600) × 1,200dpi |
| Memory |
DIMM: 512MB × 6
HDD: 160GB × 6 SATA (option) |
| Gradation |
256 |
| Paper Size |
SRA3, A3, B4, SRA4, A4, SRA4S1,
A4S1, B5, B5S1, A5S1,
12″ × 18″, 11″ × 17″, 8.5″ × 11″,
irregular sizes (330 × 487 to 140 ×182mm) |
| Image Loss |
4mm or less for top/bottom edges,
3mm or less for right/left edges |
| Warm-up Time |
420 sec. or less |
| Print Speed2 (A4/Letter) |
Full Colour: 80ppm
B/W: 80ppm |
| Paper Capacity |
Tray 1, 2, 3: 500 sheets each |
| Paper Weight |
64 to 300 g/m2,
PF-704/705: 64 to 350g/m2 |
| Multiple Print |
1 to 9,999 sheets |
| Auto Duplex (Type) |
Stackless ADU Standard |
| Power Requirement |
220 to 240V 24A (50 to 60Hz) |
| Power Consumption |
Less than 6kW |
| Dimensions [W] × [D] × [H] |
1,807mm3 × 950mm4 × 1,319mm5 (71-1/4″ × 37-1/2″ ×52″) |
| Weight |
C8000: 450kg (992lb),
EF-101: 91kg (200-1/2lb),
RU-508 : 80kg (176-1/4lb) |
| Space Requirements [W] x [D] |
5,1966, 8 × 1,5847, 8mm (204-3/4″ × 62-1/2″)
(C8000 + EF-101 + PF-704 + RU-508 + LS-505 + PB-503 + IC-306) |
|
1 S : Short edge feed
2 Printing speed may vary according to the paper weight.
3 Including RU-508 and EF-101.
4 Including RU-508 and EF-101.
5 Including RU-508 and EF-101.
6 Supposing Image Controller IC-306 positioned 5 mm side of Paper Feeder Unit
7 With the fixing conveyance unit pulled out
8 Keep 500 mm (19-3/4″) or more space free on the back, and 100 mm (4″) or more on both sides of the machine. |
| |
| Optional Controller function |
| Model |
IC-3062
(EFI) |
IC-3073
(Kodak)
*Available soon |
IC-6014
(Konica Minolta)
*Available soon |
| Type |
Server |
Server |
Embedded |
| CPU |
Core 2 Quad Q9400 2.66 GHz |
I7-860 Quad Core, 2.80GHz |
Core2 Duo 2.8GHz |
| Memory |
2GB |
5GB (System Memory: 2GB Image Memory: 3GB) |
4GB |
| HDD |
160GB SATA |
500GB × 4 SATA2 |
500GB × 4 SATA2 |
| Print Speed1 (A4 /Letter) |
80ppm |
80ppm |
80ppm |
| Print Resolution |
1,200 × 1,200dpi,
600 × 600dpi |
1,200 × 1,200dpi,
600 × 600dpi |
1,200 × 1,200dpi,
600 × 600dpi |
| PDL |
PostScript3 CPSI3017 PDF1.7
TIFF PPML VPS |
PostScript3 CPSI3017 PDF1.7
TIFF PPML PPML/VDX VPS |
PostScript3 CPSI3019 PDF1.7
TIFF (2nd) PPML PCL5c/6 (2nd)
XPS (2nd) |
| Protocol |
TCP/IP, SNMP, IPP, FTP, SMB, AppleTalk (EtherTalk), Bonjour |
TCP/IP, SMB, LPR, Bonjour |
TCP/IP, IPX/SPX,
AppleTalk (EtherTalk) IPP |
| Operating System |
Windows 2000
Windows XP
Windows Server2003
Windows Vista
Windows 7
Windows Server2008
MacOSX 10.3.9
MacOSX 10.4 or later |
Windows XP
Windows Server2003
Windows Vista
Windows 7
Windows Server2008
MacOSX 10.3.9
MacOSX 10.4 or later |
Windows 2000
Windows XP
Windows Server2003
Windows Vista
Windows 7
Windows Server2008
MacOSX 10.4 or later |
| Fonts |
PS: 136 fonts |
PS: 207 fonts |
PS: 136 fonts
PCL: 81 fonts |
| Interface |
10/100/1000Base-T |
10/100/1000Base-T |
10/100/1000Base-T |
| Dimensions |
212mm × 488mm ×482mm
(8-1/2″ × 19-1/4″ × 19″) |
180mm × 555mm × 445mm
(7-1/4″ × 21″ × 17-1/2″) |
412mm × 114mm × 402mm5 (16-1/4″ × 4-1/2″ × 16″) |
|
1 Printing speed may vary according to the paper weight.
2 Upgrade kit UK-102 (dongle) is necessary.
3 Upgrade kit UK-103 (dongle) is necessary.
4 Hard Disk Kit HD-514 and Preview Kit PH-101 are needed together.
5 Includes main body support bar and protrusion parts (screws). |
| |
| System Options |
System Configuration with Options |
 |
| |
| C8000 System Configuration Example |
Main body (including EF-101+RU-508) +HM-101+FD-503+SD-506+PB-503
+FS-521+PF-704+HT-506+PF-704+HT-506+IC-306+UK-102 |
 |
| * Dimensions and configurations may be subject to change. The actual installation space required may also vary slightly due to the connection parts for each option. |
| |
Dimensions (mm)
and weight (kg) |
Width |
Depth |
Height |
Weight |
| C8000 main body |
9001 |
9502 |
1,3193 |
450 |
| EF-101 |
497 |
774 |
1,020 |
95.5 |
| RU-508 |
410 |
735 |
1,020 |
80 |
| PF-704 |
996 |
772 |
1,038 |
212 |
| PF-705 |
996 |
772 |
1,208 |
242 |
| FS-521 |
5444 |
723 |
1,020 |
80 |
| FD-503 |
4004 |
723 |
1,231 |
130 |
| SD-506 |
1,170 |
775 |
1,020 |
280 |
| PB-503 |
1,360 |
775 |
1,223 |
270 |
| LS-505 |
785 |
723 |
1,020 |
110 |
| FS-612 |
4244 |
656 |
990 |
65 |
| GP-501 |
300 |
775 |
1,020 |
80 |
| RU-506 |
350 |
775 |
1,020 |
47 |
| PI-502 |
511 |
220 |
620 |
10.5 |
| IC-306 |
212 |
488 |
482 |
20 |
|
1 Excluding operation panel and working table
2 Maximum depth 950mm (including rear side duct)
3 Excluding operation panel
4 Excluding main tray |
| |
| System Simulator bizhub PRESS C8000 |
| Configure the best system for your needs. |
 |
| |
|
|
|
