Product Overview
  • Simitri® HD + High Chroma toner fuses to paper at lower temperatures for faster processing speeds without sacrificing image quality
  • RGB workflow provides superior color reproduction across a multitude of media
  • Screen-Enhancing Active Digital Processing (SEAD-II) system maintains continuous color stability with two real-time sensors
  • Unrivalled image quality – Matchless clarity and precision with 1,200 x 1,200dpi x 8bit
  • Easily customizable with a variety of finishing options to fit your business needs
Features
Intro

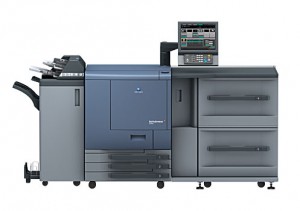

The bizhub PRESS C70hc with revolutionary High Chroma toner technology produces truly magnificent colours unlike any ever experienced before. Best of all, the modular design of the bizhub PRESS C70hc provides top class image quality, outstanding quality consistency on color output, highest productivity and highly versatile handling for different industries and their business development.

sRGB Workflow Compatible
New and exclusive “High Chroma Toner” together with the use of high-chroma components, the output color is closer to the sRGB color gamut. This incredible color performance enables users to produce promotional materials in different output formats to meet a variety of publicity and unique uniform color of products, such as name cards and packages.

Excellent Image Consistency
The ICD sensor automatically corrects halftone density during continuous printing to improve stability in any setup environment. And the Screen-Enhancing Active Digital Processing (SEAD-II) system maintains color stability, using two real-time sensors.

Hybrid Decurling System
The C70hc has two paper decurling mechanisms, including a standard mechanical decurler and an optional humidifier type decurler (HM-102). It reduces paper curling to ensure the quality output so as to eliminate a lot of curl on the paper after printing and prevent the accumulation of static electricity so that the output is smooth.

Specifications
Model Name bizhub PRESS C70hc
Type Console
Colour Support Full colour
Resolution 1,200 (3,600 equivalent) × 1,200dpi
Memory DIMM: 512MB × 6
HDD: 160GB × 6 SATA (option)
Gradation 256
Paper Size SRA3, A3, B4, SRA4, A4, SRA4S1, A4S1,
B5, B5S1, A5S1, 12″ × 18″, 11″ × 17″, 8.5″x 11″,
irregular sizes (330 × 487 to 140 × 182mm)
Image Loss 4mm or less for top edges, 4.5mm or less for bottom edges,
3mm or less for right/left edges
Warm-up Time 420 sec. or less
First Copy Time (A4) Colour: 7.6 sec. or less B/W: 5.9 sec. or less
Print Speed*1 (A4/Letter) Colour: 71/70ppm B/W: 71/70ppm
Paper Capacity Standard 1,500 sheets (80 g/m2)
Paper Weight*2 64 -300 g/m2
Multiple Print 1 to 9,999 sheets
Auto Duplex (Type) Standard
Power Requirement 220 -240V 20A (50-60Hz)
Power Consumption Less than 4.6kW
Dimensions [W] × [D] × [H]*3 760 × 992.7 × 1,075.6mm (30″ × 39″ × 42-1/4″)
Weight 353kg (778-1/2 lb.)

*1 Printing speed may vary according to the paper weight.
*2 Main body trays: 64 to 256g/m2
*3 Excluding control panel and output tray. Including back side duct.
1 S: Short edge feed

Print Controller Specifications
Model Fiery IC-306 IC-601* Kodak IC-307
Type Server Embedded Server
CPU Core 2 Quad Q9400 2.66 GHz Core 2 Duo 2.8GHz Core i7-860 Quad Core, 2.80 GHz
Memory 2GB 4GB 5GB (System Memory: 2GB
Image Memory: 3GB)
HDD 160GB SATA 250GB × 2 SATA 500GB × 4 SATA2
Print Speed Same as engine print speed Same as engine print speed Same as engine print speed
Print Resolution 1,200 (3,600 equivalent) × 1,200dpi 1,200 (3,600 equivalent) × 1,200dpi 1,200 (3,600 equivalent) × 1,200dpi
PDL PostScript3 CPSI3017 PDF1.7
PPML VPS
PostScript3 CPSI3019 PDF1.7
TIFF, PPML, PCL5c/6, XPS
PostScript3, CPSI3017,
PDF library9.0, PPML
Protocol TCP/IP, SNMP, IPP,
FTP, SMB,
AppleTalk (EtherTalk),
Bonjour
TCP/IP,
IPX/SPX, Net BEUI,
AppleTalk (EtherTalk),
IPP, WSD
TCP/IP,
SMB,
LPR,
Bonjour
Operating System Windows 2000
Windows XP
Windows Server 2003
Windows Vista
Windows 7
Windows Server 2008
MacOS × 10.3.9 or later
Windows 2000
Windows XP
Windows Server 2003
Windows Vista
Windows 7
Windows Server 2008
MacOS × 10.3.9 or later
Windows XP
Windows Server 2003
Windows Vista
Windows 7
Windows Server 2008
MacOS × 10.3.9 or later
Fonts Adobe PostScript fonts: 136 fonts Adobe PostScript fonts: 136 fonts
PCL 81 fonts
PostScript fonts: 207 fonts
Interface 10/100/1000Base-T 10/100/1000Base-T 10/100/1000Base-T
Dimensions 212 × 488 × 482mm
(8-1/2″ × 19-1/4″ × 19″)
412 × 114 × 402mm
(16-1/4″ × 4-1/2″ × 16″)
180 × 445 × 556mm
(7.1″ × 17.5″ × 12.9″)

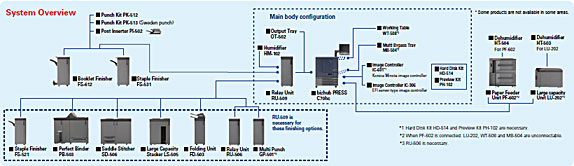

System Options
