The digital printing system must provide new ways to create more orders and coexist in harmony with the offset business to increase business and customer satisfaction for print providers. That’s because more and more customers today are demanding more advanced paper media, a wider variety of small-lot orders with quick turn-around which is contrary to the “mass printing” specialised by offset presses, and personalised printing to support one-to-one marketing.
Based on this Harmonics concept, the bizhub PRESS C1070/C1060 are Multi-Role Digital Presses designed to accomplish a wider range of printing missions at higher standards for the next level of success for print providers.
Product Overview
Achieve offset-like results that meet expectations. Gain the competitive edge with high-qualityand high-accuracy finishes which exceed competitive light-production printers.
The thorough pursuit for offset quality
High resolution technology for beautiful reproductions
1,200 dpi x 8-bit high quality & precision
Reproduce minute text and thin lines clearly as well as rich colour gradations even for colour images through synergy with 1,200 × 1,200 dpi high-resolution printing and Simitri HDE toner.

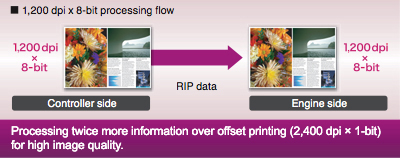

■ 256-step 8-bit processing controller and engine
Eight-bit multi-gradation data processing flow for each colour displays 256-step gradations within a single pixel. Both colour and monochrome data can be processed in 1200 dpi x 8-bit resolution.
Optimise print quality according to the output material
New FM screen processing

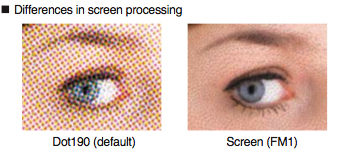

FM (Frequency Modulation) screen processing fully leverages the C1070 series’ 1,200 dpi resolution. Improved 1,200 dpi FM screens with enhanced resolution and granularity eliminate jaggedness and moiré for smoother reproductions. In addition, the optimal screen processing can also be selected to match the quality required for the output based on the dots and lines.
Outline processing for clearer textsl
Precise outline processing
High precision outline processing practically eliminates blurs and raggedness of lines, normally associated with digital printing, to reproduce text details in higher definition. Quality is even improved for outputs that combine coloured text with thin lines and sharp outlines.
High stability Take duplex printing, folding, and trimming to the next level
Enhance print position accuracy
Higher print position accuracy

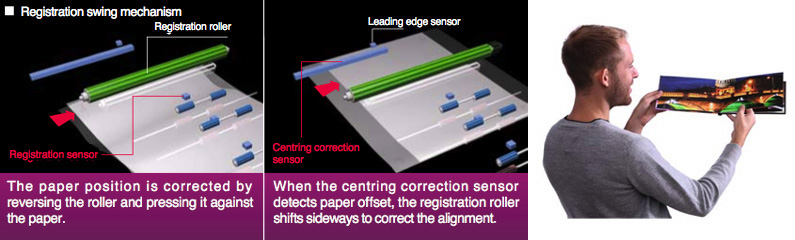

The newly developed registration swing mechanism is standard-equipped with a centring detection sensor on the registration portion of the engine to provide high-precision centring correction.High resolution technology for beautiful reproductions
Consistent and stable outputs from the first print to the last

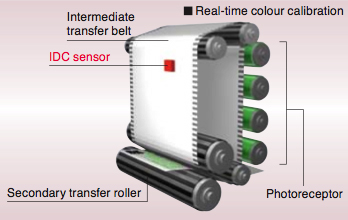

This function controls image stability in short intervals during continuous printing by detecting density correction patches on the intermediate transfer belt and dot diameter correction patches with the IDC sensor, providing stable high quality outputs for a wide range of densities. range of densities. (Operates only when the Stabilization Adj Operation Setting is set at “Stability”)
Stable developer performance. Stable image quality

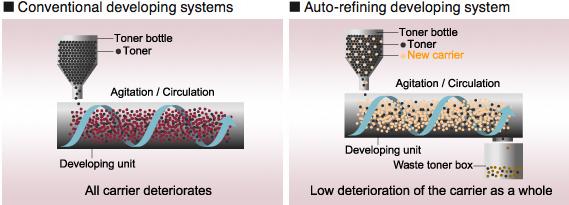

Auto-refining developing system
Adopted for all four colours, auto-refining developing delivers stabilised high quality even for full colour images. New carrier along with the toner is regularly supplied to refresh the developer, stabilising the developer condition to maintain high quality outputs over the long term. Its longer life also helps to minimise downtime.

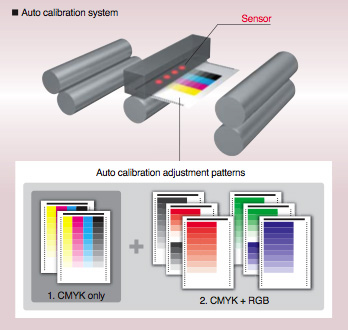

Konica Minolta’s proven auto calibration system
Enhanced colour density adjustment function with Relay Unit RU-509
Correct the gradation density to match the characteristics of the output paper. Auto calibration offers up to 15 correction values according to paper or screen type. In addition, a mode that measures RGB as well as CMYK for the target colour further enhances accuracy.
* Optional. Equipped in RU-509
Specifications
General Specifications
bizhub PRESS C1070
bizhub PRESS C1060
Type
Console type
Copy Method
4-coupled drum tandem laser electrostatic method
Resolution
Scan
600 dpi × 600 dpi
Print
1,200 dpi (Equivalent to 3,600 dpi) × 1,200 dpi
Gradation
8-bit / 256 Gradation
CPU
Core i5 2400 3.1 GHz
Pentium G850 2.9 GHz
System Memory Capacity
6 GB
HDD
1.5 TB
Original Type
Sheet, Book, Solid object
Max. Original Size
A3 or 11×17
Max. Printing Area
323 mm × 480 mm
Output Size
(S: Short Edge Feed )
SRA3, A3, B4, A4, B5, 13 × 19, 11 × 17, 8 1/2 × 14, 8 1/2 × 11,5 1/2 × 8 1/2S Tab paper (A4, 8 1/2 × 11)
Max. 330 mm×487 mm, Min. 140 mm × 182 mm
Multi-bypass(Option): SRA3, A3, B4, A4, B5, 13 × 19, 11 × 17, 8 1/2 × 14, 8 1/2 × 11, 5 1/2 × 8 1/2S
Tab paper (A4, 8 1/2 × 11)
Max. 330 mm × 487 mm, Min. 100 mm × 148 mm
Image Loss
Max. 4 mm or less for top edge, Max. 4.5 mm or less for bottom edge,
Max. 3.0 mm or less for right/left edges
62 g/m2 to 256 g/m2 *3 (plain, Fine, Colour Specific)
81 g/m2 to 256 g/m2 *3 (Coated)
Option(MB-506)
62 g/m2 to 300 g/m2 (Plain, Fine, Color Specific)
Continuous Copy Count
Up to 9,999 sheets
Power Source
Inch: AC208 to 240V 21A 60 Hz
Metric: AC220 to 240V 20A, 50 Hz / 60 Hz
Power Consumption
Inch: 4,900W or less (Main body only)
Metric: 4,700W or less (Main body only)
Dimensions [W] × [D] × [H]
760 mm*4 × 903 mm*5 × 1,073 mm*6
29.92″*4 × 35.55″*5 × 42.24″*6 (Main body + Original Cover)
Weight
Approximately 291 kg / 641 lb (Main body only)
*1 MB-506, PF-602m, PF-707 and LU-202 are the options.
*2 PF-602m and PF-707 are not available when MB-506 is installed.
*3 For paper size A4 or smaller than 8 1/2 × 11, it is up to 216 g/m2.
*4 Excluding the control panel, output tray, work table.
*5 Including the rear duct.
*6 Height to the top of the original cover excluding the control panel.
bizhub PRESS C1070/C1060 Printer Controller
Image Controller IC-308
Type
Server
CPU
Conforms with main unit specification
Memory
4 GB
HDD
1 TB
Page-description Language
Adobe PostScript 3 (3019), PDF 1.7,PPML 2.2,APPE 2.5,PCL 5/6 emuration
Printing Method
TCP/IP, SNMP, SMB, FTP, LPR, IPP, Bonjour
Applicable OS
Windows XP / Vista / 7 / 8 / Server 2003 / Server 2008
Server 2008*1
MacOSX 10.5 / 10.6 / 10.7 / 10.8
Interface
10 / 100 / 1000Base-T
Scanner Resolution
200 / 300 / 400 / 600 dpi
Data Format
PDF, TIFF, JPEG
Driver
Twain Plug-in
*1 Including 64-bit versions.
Image Controller IC-602
bizhub PRESS C1070
bizhub PRESS C1060
Type
AIO to the engine (option)
CPU
Conforms with main unit specification
Memory
Max. 14 GB
Details: 2 GB + 4 GB
(Standard of the main body)
+ 4 GB (IC-602) + 4 GB (UK-104)
Max. 14 GB
Details: 2 GB + 4 GB
(Standard of the main body)
+ 4 GB (IC-602) + 4 GB (UK-104)
HDD
Max. 2 TB
Details: 500 GB × 3
(Standard of the main body)
+ 500 GB (UK-104)
Max. 2 TB
Details: 500 GB × 3
(Standard of the main body)
+ 500 GB (UK-104)
Page-description Language
Adobe PostScript3 (PS3019), PDF direct print (PDF version 1.7),
APPE (version 2.6) (UK-104 or UK-207 is required),
PDF/VT (version 2) (UK-104 or UK-207 is required),
TIFF direct print (TIFF version 6 compliance), PPML (version 2.2),
PCL-5c compatible, PCL XL (PCL6 version 3) compatible
Printing Method
Pserver (IPX/SPX), LPD / LPR (TCP/IP), IPP (TCP/IP), AppleTalk
(EtherTalk),Bonjour (TCP/IP), Web service printing (TCP/IP), NPrinter /
RPrinter(IPX/SPX), Raw Port (TCP/IP), SMB
Applicable OS
PS Plug-in
Windows XP / Server 2003 / Vista / Server 2008 / 7 / 8 / Server 2012*1
MacOSX 10.5 / 10.6 / 10.7 / 10.8 (PPC/Intel)
PS PPD*2
Windows XP / Server 2003 / Vista / Server 2008 / 7 / 8 / Serv er 2012*1
Linux CUPS
Interface
Ethernet (1000BASE-T / 100Base-TX / 10Base-T) with IPv6, USB
Scanner Resolution
200 / 300 / 400 / 600 dpi
Data Format
PDF, TIFF, JPEG, XPS
Driver
HDD Twain Driver, Real Time Mode Twain Driver
*1 Includes 64-bit.
*2 WHQL is not obtained for the PS PPD driver
1 S : Short edge feed
2 Printing speed may vary according to the paper weight.
3 Including RU-508 and EF-101.
4 Including RU-508 and EF-101.
5 Including RU-508 and EF-101.
6 Supposing Image Controller IC-306 positioned 5 mm side of Paper Feeder Unit
7 With the fixing conveyance unit pulled out
8 Keep 500 mm (19-3/4″) or more space free on the back, and 100 mm (4″) or more on both sides of the machine.
Windows 2000
Windows XP
Windows Server2003
Windows Vista
Windows 7
Windows Server2008
MacOSX 10.3.9
MacOSX 10.4 or later
Windows XP
Windows Server2003
Windows Vista
Windows 7
Windows Server2008
MacOSX 10.3.9
MacOSX 10.4 or later
Windows 2000
Windows XP
Windows Server2003
Windows Vista
Windows 7
Windows Server2008
MacOSX 10.4 or later
Fonts
PS: 136 fonts
PS: 207 fonts
PS: 136 fonts
PCL: 81 fonts
Interface
10/100/1000Base-T
10/100/1000Base-T
10/100/1000Base-T
Dimensions
212mm × 488mm ×482mm
(8-1/2″ × 19-1/4″ × 19″)
180mm × 555mm × 445mm
(7-1/4″ × 21″ × 17-1/2″)
412mm × 114mm × 402mm5 (16-1/4″ × 4-1/2″ × 16″)
1 Printing speed may vary according to the paper weight.
2 Upgrade kit UK-102 (dongle) is necessary.
3 Upgrade kit UK-103 (dongle) is necessary.
4 Hard Disk Kit HD-514 and Preview Kit PH-101 are needed together.
5 Includes main body support bar and protrusion parts (screws).
System Options

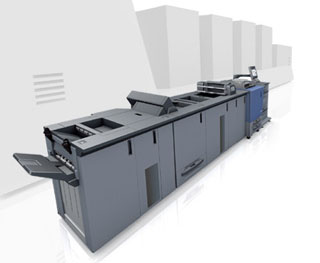

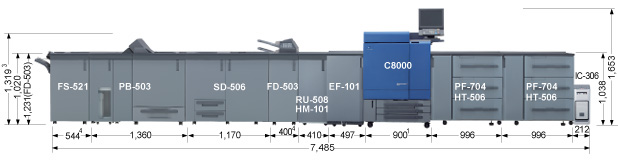

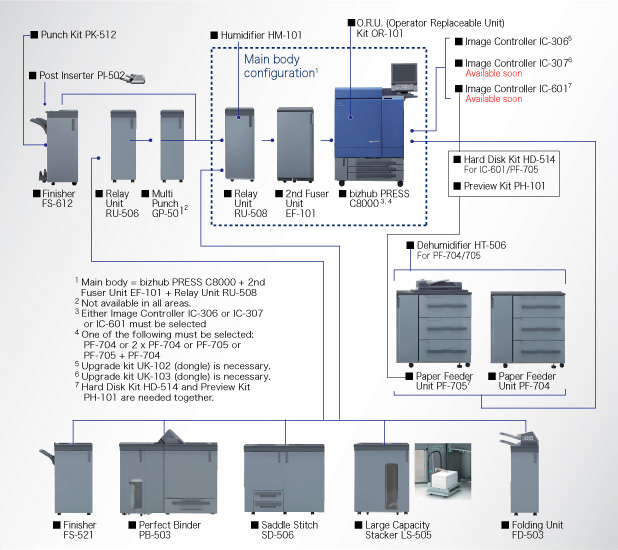

System Configuration with Options
C8000 System Configuration Example
Main body (including EF-101+RU-508) +HM-101+FD-503+SD-506+PB-503
+FS-521+PF-704+HT-506+PF-704+HT-506+IC-306+UK-102
* Dimensions and configurations may be subject to change. The actual installation space required may also vary slightly due to the connection parts for each option.
Dimensions (mm)
and weight (kg)
Width
Depth
Height
Weight
C8000 main body
9001
9502
1,3193
450
EF-101
497
774
1,020
95.5
RU-508
410
735
1,020
80
PF-704
996
772
1,038
212
PF-705
996
772
1,208
242
FS-521
5444
723
1,020
80
FD-503
4004
723
1,231
130
SD-506
1,170
775
1,020
280
PB-503
1,360
775
1,223
270
LS-505
785
723
1,020
110
FS-612
4244
656
990
65
GP-501
300
775
1,020
80
RU-506
350
775
1,020
47
PI-502
511
220
620
10.5
IC-306
212
488
482
20
1 Excluding operation panel and working table
2 Maximum depth 950mm (including rear side duct)
3 Excluding operation panel
4 Excluding main tray
System Simulator bizhub PRESS C8000
