| Product Overview |
Product Highlights
- Output size: A3
- Output Type: Monochrome
|
Recommended Uses
- Print Volume: High
- Recommended Usage: Large Workgroups
|
| bizhub’s wide potential |
| This bizhub has a lot of surprises. |
| Features |
| The simplicity and usability to fit in any working environment |
| Print from anywhere, anytime with the most advanced wireless, mobile and cloud technology |
| Flexible and advanced security features to protect valuable information |
| Innovation helping everyone to reach the full potential |
| Environmental contribution is always the top priority |
| |
The simplicity and usability to fit in any working environment |
|
|

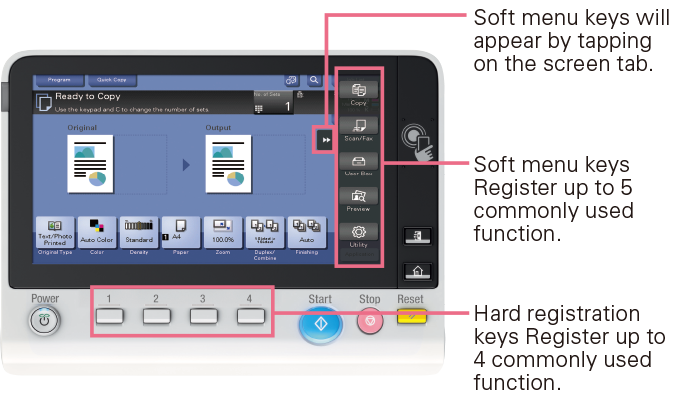

New 7 inch operation panel |
 |
The new 7 inch operation panel provides best in class multi-touch sensitivity, user friendly interface and intuitive operability. User can register up to 9 functions with the combination of hard and soft menu keys mounted on the panel.
The screen display function can be enlarged and screen display colour can be reversed for ease of use. |
| |
|

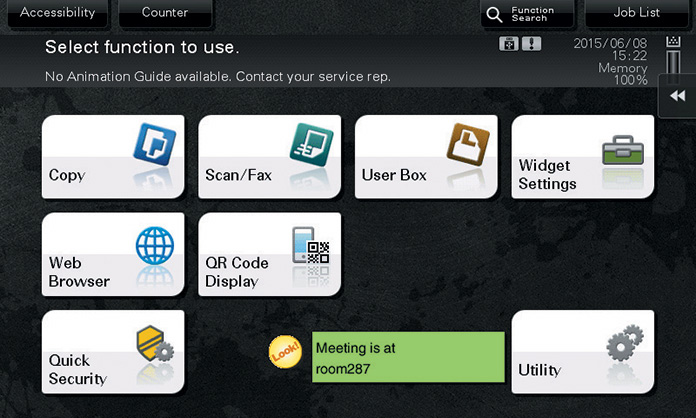

| Widgets function |
 |
The new bizhub 367 series comes with embedded widget application where users can install and execute within the MFP operation panel. Text boxes, icons or GIF animations can be configured and used for internal communication, messages and rules. |
| |
|

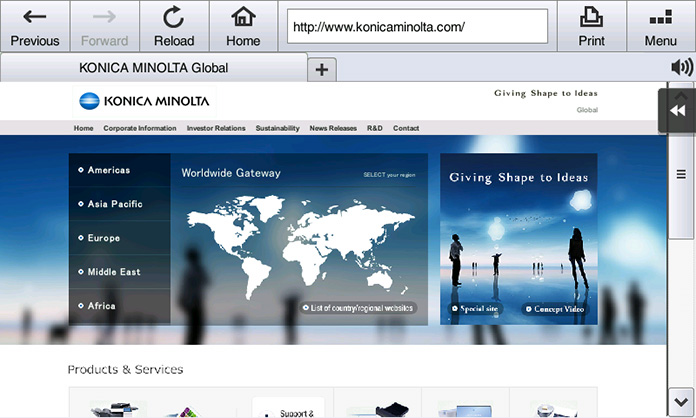

| Standard web browser |
 |
The multi-touch UI in the operational panel can be used to display and print webpage contents. Printing of portions of PDF files or maps directly from the websites are more convenient now. |

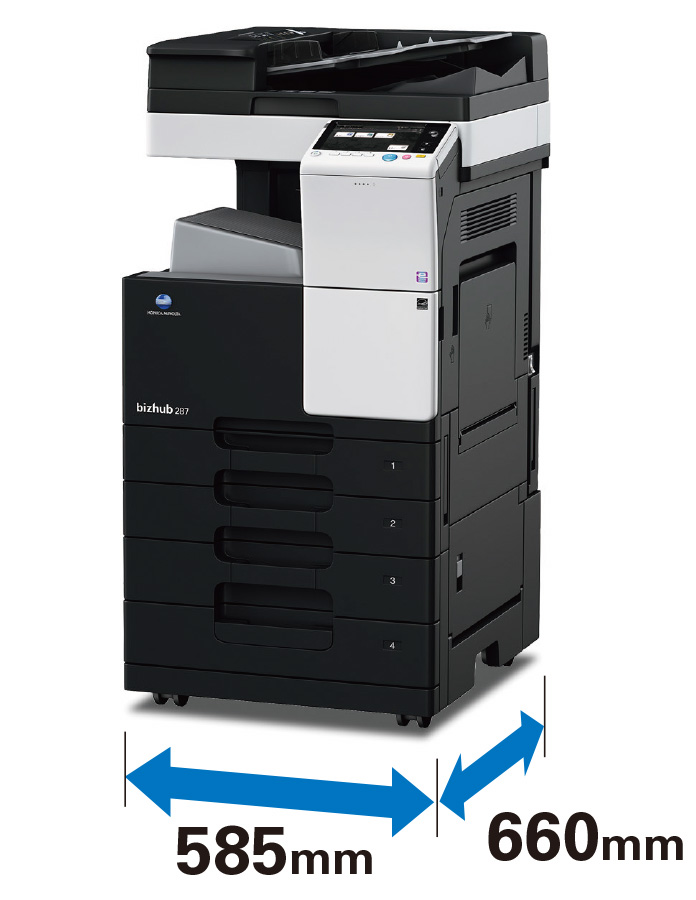

| Lighter and compact MFP body |
|
The newly developed MFP main body offers compact and lightweight body so as to fit almost in any type of working space. |
 |
| |
|
| The product design |
|
The bizhub 367 series adopts easy and intuitive INFO-Palette design with smart user interface. You get the same user experience through seamless operation across the PCs, tablets or smartphones. |
 |
| |
|
|
Print
from anywhere, anytime with the most advanced wireless, mobile and cloud
technology

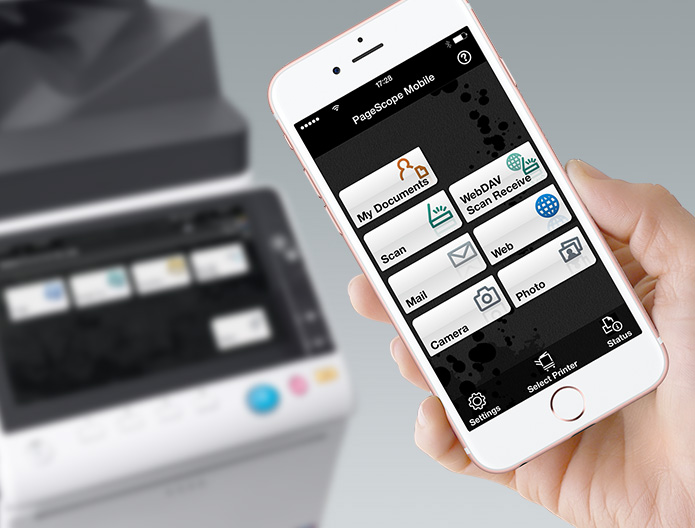

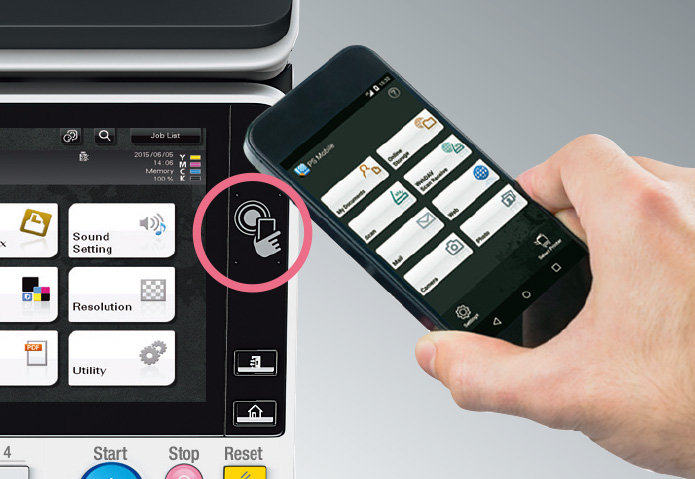

The
Mobile Touch Area
The
operation panel is equipped with newly embedded Mobile Touch Area to support
NFC (Near Field Communication) connection for Android*1 devices.
Pairing can be performed, through PageScope Mobile (PSM), by touching the
area with Android device. First select the files on PSM and then touch the
device to the operation panel to perform Print*2 or
scan*.
*1
NFC connection requires Android OS 4.4 or higher to be installed.
*2 Wireless LAN environment is required to perform touch to print and scan.

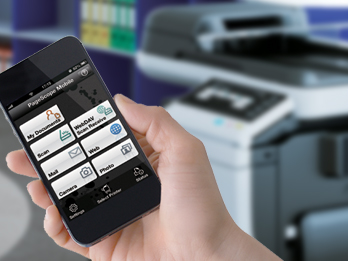

To
connect with iOS devices
For
the iOS devices, you can search and register nearby bizhub into the
PageScope Mobile (PSM)*3 via
Bluetooth LE (BLE)*4 technology.
iOS devices can also be used to log-into bizhub via BLE connection. Selected
files on PSM can be printed*5 directly
or scan*5 files
to iOS devices.
*3
PageScope Mobile for iPhone/iPad version 5.0 or higher is required.
*4 Optional Device Connection I/F Kit EK-609 is required.
*5 Wireless LAN environment is required to perform print and scan.

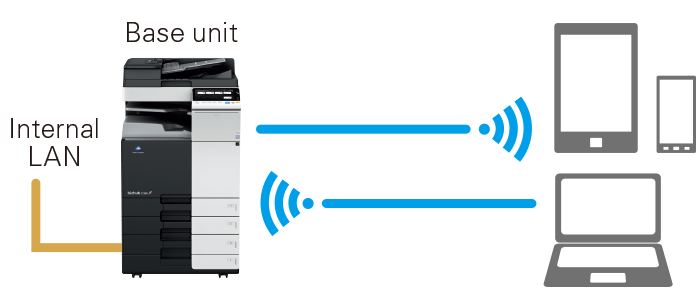

Wireless
LAN (AP mode) connection image
Wireless
LAN (AP mode) support
Make
your bizhub wireless LAN Access Point*6 to
wirelessly connect mobile devices. Devices thus will not only able to
connect directly with bizhub but are also securely separated from exiting
LANs.
PageScope Mobile*3 will
enable more convenience as wireless set up can be completed between a mobile
device and bizhub by reading the QR code that is displayed on the machine
panel.
*6
Optional Upgrade Kit UK-212 and Device Connection I/F Kit EK-608 or EK-609
are required.
*
In AP mode (base unit), simultaneous connections can be made with up to 5
devices.

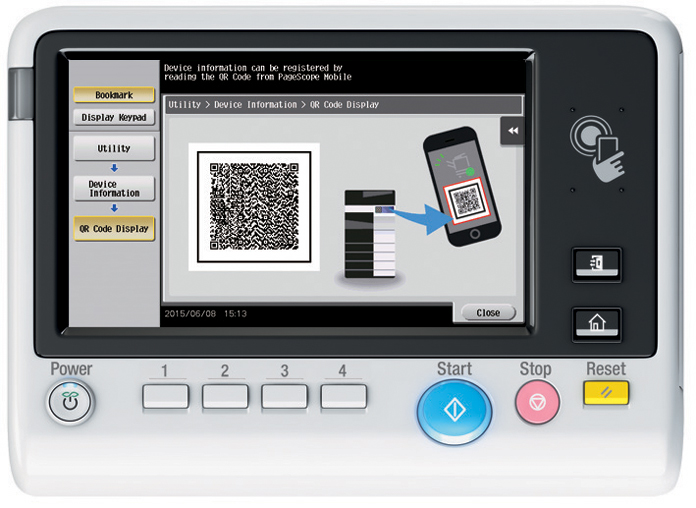

QR
code display screen
To
connect instantly without print drivers to the industry standard mobile
technologies
Apple’s
standard printing system is compatible with iOS 4.2 and Mac OS 10.7 or
later. A compatible printer on your wireless LAN can be used.
Wireless
printing technology established by Mopria Alliance. It allows you to print
from devices installed with Android 4.4 or later.
A
cloud print service provided by Google. You can print from any location via
the internet regardless of OS or device type.
*
Google Cloud Print Setup and Google account registration are required.
* Optional Upgrade Kit UK-211 is required.
-
Konica
Minolta Print Service
Print
directly to bizhub via a wireless LAN from all apps that supports
Android’s print function.
Konica
Minolta’s proprietary mobile print application allows usage of wide range
of bizhub functions such as duplex print, security print, staple and punch.
How
to use QR code
Use with your mobile device.
Access and download easily without typing the website address.
Flexible
and advanced security features to protect valuable information
Authentication
on the MFP main unit
User
can perform authentication directly on the main unit. Access control can be
set up for functions like print, scan, copy and fax*1.
*1
FAX feature requires optional FAX Kit FK-513 and HDD will be needed if MFP
does not equip the HDD as standard.

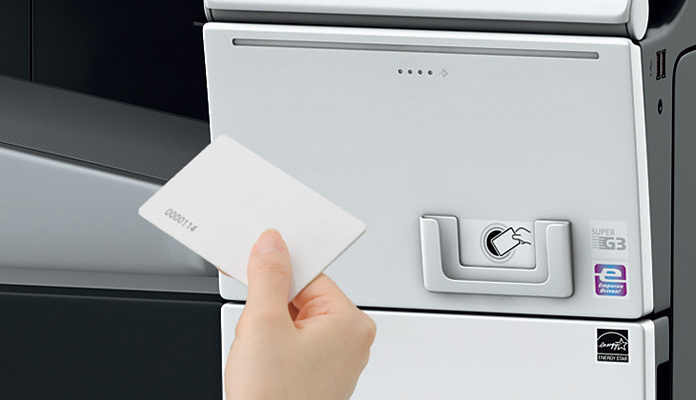

IC
card authentication
Users
can authenticate*2 with
various types of IC card*3.
The authentication method complies with SSFC (Shared Security Formats
Cooperation). Besides the IC Card, users can authenticate with Android
devices*4with
equipped NFC antenna.
*2
Optional Authentication Unit AU-201S is required.
*3
Compliant non-contact IC cards include FeliCa (IDm), SSFC, FCF, FCF
(campus), FeliCa Private, and MIFARE (UID).
*4
Requires Android 4.4 or later that supports HCE (Host Card Emulation) or
PageScope Mobile for Android v4.1 or later.

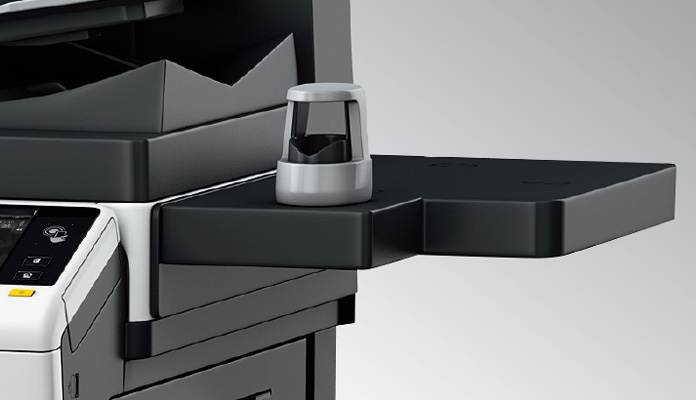

Biometric
authentication
Scans
the veins on the finger as the biometric data which offers very high-level
security and is easy to implement.
*4
Optional Biometric Authentication Unit AU-102 and Working Table WT-506 are
required.
TPM
(Trusted Platform Module)
TPM
(Trusted Platform Module) is a security chip which encrypts and decrypts
confidential data. The information is encrypted and stored in dedicated
storage area in the chip to avoid unauthorized reading.
Optional
i-Option LK-115 v2 is required.

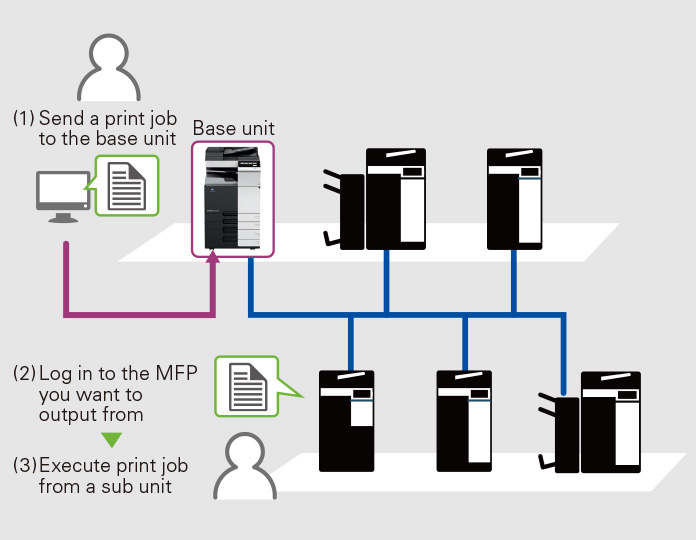

Server-less
pull printing
With
server-less pull printing, print jobs sent by user can be printed from any
MFP in the same network.
*
A pull printing system consisting of a maximum of 10 MFPs can be created. It
is necessary that all corresponding MFPs be in the same network.
*
Optional i-Option LK-114 and Upgrade Kit UK-211 are required to be installed
to each of the MFP.

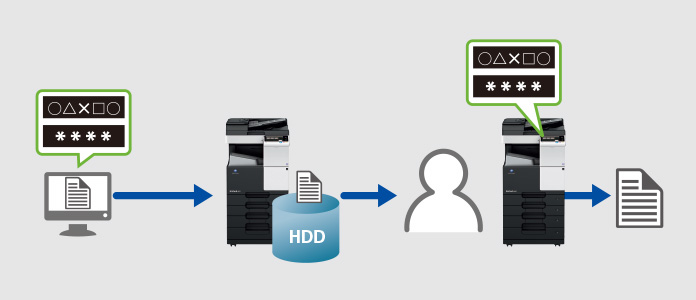

ID
& Print
To
restrict the outputs to specific user or print confidential documents, user
can set a password before executing the print. The print data will be stored
in the HDD of the MFP and will not be printed until the same password is
entered on the MFP.
Innovation
helping everyone to reach the full potential

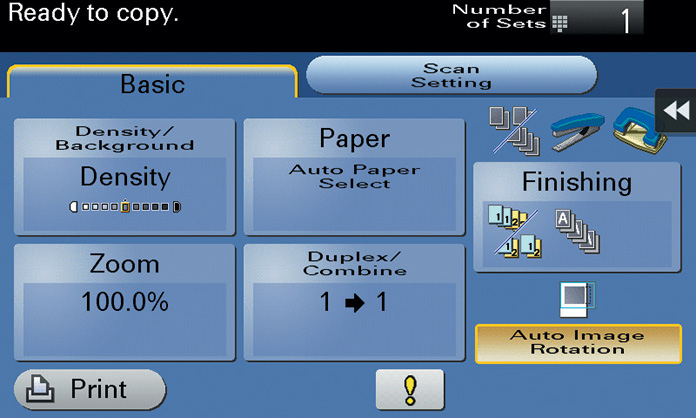

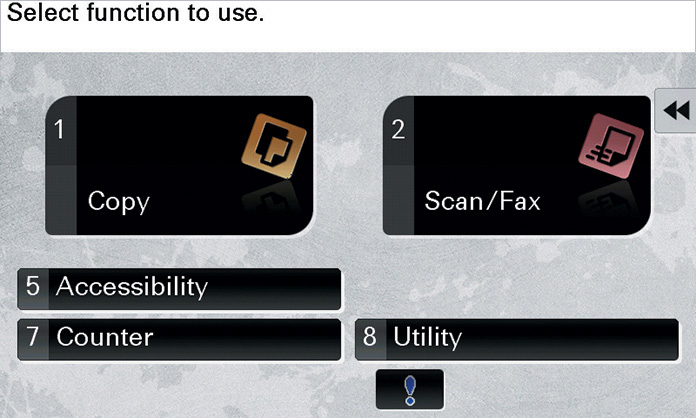

Screen
display enlarge and colour reversal functions
For
better visibility now it is possible to enlarge the text on the buttons and
reverse the screen display colour while maintaining the same contrast ratio.

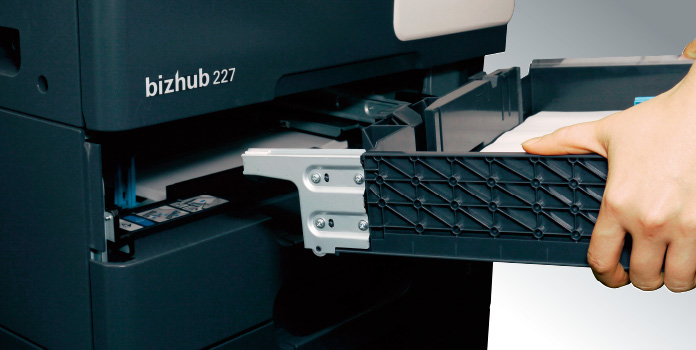

Detachable
paper cassette
Paper
cassette of the bizhub is detachable to easily remove the jammed paper that
has remained inside the MFP.
Environmental
contribution is always the top priority

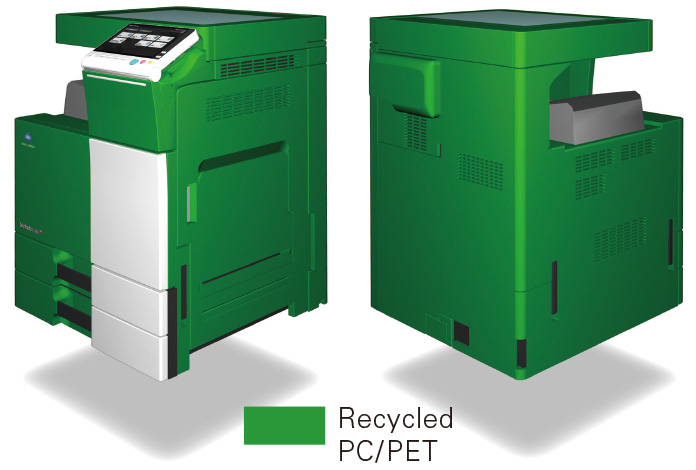

Usage
of the recycled materials
Recycled
PC/ABS and biomass plastic have been used in the MFP body. The recycled
material usage is approximately 11% of total MFP weight ratio*1 and
approximately 51% of the MFP main body are made by the recycled materials.
*1
Total weight ratio of resins and plastics used in this machine.
Top
class power consumption and TEC value in its class
The
MFP’s CPU power is set to turn off during sleep mode. This results in a
best-in-class 0.5 W power consumption ratio (during sleep mode). The TEC
value has also been reduced approximately by 32-55%.
*
Values for 220-230 V
* TEC values applied to the International Energy Star Program Version 2.0
Yearly
CO2 emissions:
TEC value × 52 weeks × emission factor
(From the November, 2011 press release by Japan’s Ministry of the
Environment.)
|
| |
| Features |
» The simplicity and usability to fit in any working environment
» Print from anywhere, anytime with the most advanced wireless, mobile and cloud technology
» Flexible and advanced security features to protect valuable information
» Innovation helping everyone to reach the full potential
» Environmental contribution is always the top priority
|
Specifications
Printer
Specifications
|
bizhub
367 |
bizhub
287 |
bizhub
227 |
| CPU |
ARM
Cortex-A7 Dual-core 1.2GHz |
| Memory
Capacity (Std./Max.) |
2
GB/4 GB |
| Print
Speed |
36
ppm |
28
ppm |
22
ppm |
| HDD |
250
GB (optional, shared with the copier) |
| Print
Resolution |
1,800
dpi (equivalent) × 600 dpi |
| PDL |
PCL
6, PostScript 3 Emulation, XPS |
| Protocol |
TCP/IP,
IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, AppleTalk |
| Support
OS |
Windows
Vista*1 / 7*1 / 8*1 / 8.1*1 / 10*1
Windows Server 2008*1 / 2008 R2 / 2012 / 2012 R2
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11)
Linux |
| Protocol |
TCP/IP,
IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, AppleTalk |
| Support
OS |
Windows
Vista*1 / 7*1 / 8*1 / 8.1*1 / 10*1
Windows Server 2008*1 / 2008 R2 / 2012 / 2012 R2
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11)
Linux |
| Fonts |
PCL |
80
Roman fonts |
| PS |
137
Roman Type1 fonts |
| Interface |
Ethernet
(10BASE-T/100BASE-TX/1000BASE-T), |
| USB
1.1, USB 2.0, IEEE 802.11 b/g/n*2 |
*1 Supports the 32-bit (x86) or 64-bit (x64) environment.
*2 Optional
Scanner
Specifications
| Type |
Full-Colour
Scanner |
| Interface |
Ethernet
(10BASE-T/100BASE-TX/1000BASE-T), IEEE 802.11 b/g/n*1 |
| Driver |
TWAIN
Driver, HDD TWAIN Driver |
| Protocol |
TCP/IP
(FTP, SMB, SMTP, WebDAV) (IPv4/IPv6) |
Scanning
Speed (Colour/B&W)
(300 dpi, A4, Simplex) |
45
opm*2 |
| Scanning
Size |
Max.
A3 (11″ × 17″) |
| Output
Format |
TIFF,
JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*1, docx*1),
Searchable PDF*1, PDF/A*1, Linearised PDF*1 |
| Scanning
Resolution |
Push |
200
dpi / 300 dpi / 400 dpi / 600 dpi |
| Pull |
100
dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi |
| Main
Functions |
Scan
to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), |
| Network
TWAIN, Scan to WebDAV, Scan to USB, Scan to Scan Server, |
| Scan
to Web Service (WSD-Scan), |
| Device
Profile for Web Services (DPWS) |
| Other
Functions |
Multi-Method
Send, Authentication at the time of E-Mail send (SMTP authentication,
POP before SMTP), S/MIME, Annotation |
*1 Optional
*2 When using the Reverse Automatic Document Feeder DF 628.
Copier
/ General Specifications
| Type |
Desktop
Monochrome A3 Multifunctional Printer |
| Copy
Resolution |
Main:
600 dpi × Sub: 600 dpi |
| Gradation |
256 |
| Memory
Capacity (Std./Max.) |
2
GB |
| HDD |
250
GB (optional) |
| Original
Type |
Sheets,
Books, Objects |
| Max.
Original Size |
A3
(11″ × 17″) |
| Output
Size |
Main
unit: A3 to A5, 11″ × 17″ to 8-1/2″ × 11″,
5-1/2″ × 8-1/2″, 8″ × 13″*1, 16K, 8K
Bypass Tray: A3 to A5, B6*2, A6*2, 11″ × 17″ to
5-1/2″ × 8-1/2″, 8″ × 13″ *2, 16K, 8K,
Postcard (A6 (4″ × 6″ Card)),
Envelope*3, Label sheet, Tab paper |
| Warm-Up
Time*4 (23°C, std. voltage)
*
The time required to start printing when both the main power and
sub-power switches are turned from OFF to ON. |
20
sec. or less |
| *
The time required to start printing when the main power switch is ON
and the sub-power switch is turned from OFF to ON. |
15
sec. or less |
| Copy
Out Time*5 |
4.5
sec. or less |
5.3
sec. or less |
|
| Copy
Speed (A4) |
36
ppm |
28
ppm |
22
ppm |
| Copy
Magnification |
Fixed
Same Magnification |
1:
1±0.5% or less |
| Scaling
Up |
1:
1.154/1.224/1.414/2.000 |
| Scaling
Down |
1:
0.866/0.816/0.707/0.500 |
| Preset |
3
types |
| Zoom |
25
to 400% (in 0.1% increments) |
| Lengthwise
Crosswise Individual Settings |
25
to 400% (in 0.1% increments) |
| Paper
Capacity(80 g/m2) |
Tray
1 |
500
sheets (up to B4) |
| Tray
2 |
500
sheets (up to A3) |
| Multiple
Bypass Tray |
100
sheets (up to A3) |
| Max.
Paper Capacity (80 g/m2)*6 |
3,600
sheets |
| Paper
Weight |
Tray
1 / 2 |
60
to 220 g/m2 |
| Multiple
Bypass Tray |
60
to 220 g/m2 |
| Multiple
Copy |
1
to 9,999 sheets |
| Auto
Duplex |
Paper
Size |
A3
to A5*2, B5*7, 11″ × 17″*2 to 5-1/2″ ×
8-1/2″*2, 7-1/4″ × 10-1/2″, 8″ ×
13″*2, 16K, 8K*2 |
| Paper
Weight |
60
to 209 g/m2 |
| Power
Requirements |
AC230
V 7 A (50 to 60 Hz) |
| Max.
Power Consumption |
1.5
kW or less |
| Dimensions
[W] × [D] × [H] |
585
× 660 × 735 mm (23-1/16″ × 26″ × 28-15/16″) |
| Weight |
Approx.
56.5 kg (124-1/2 lb) |
| Space
Requirements [W] × [D]*8 |
899
× 1,172 mm (35-1/2″ × 46-1/4″) |
*1 There are six types of foolscap: 8-1/2″ × 13-1/2″*2, 220 mm ×
330 mm*2, 8-1/2″ × 13″*2, 8-1/4″ × 13″*2,
8-1/8″ × 13-1/4″*2, and 8″ × 13″*2.
Any one of these sizes is selectable. For details, contact your service
representative.
*2 Short edge feed
*3 Wrinkles or printing errors may occur due to the type, storage or
environment that exists when envelope printing is carried out.
*4 May vary depending on the operating environment and usage.
*5 A4 long edge feed full size/using the first tray/scanning from the original
glass surface.
*6 With options installed.
*7 Long edge feed
*8 Without options, with paper trays pulled out and multiple bypass tray
opened.
Internet
Fax
| Protocol |
TX:
SMTP, RX: POP3, TCP/IP Simple mode |
| Connection
Mode |
Full-Mode |
| Sending
Paper Size |
A3,
B4, A4 |
| Recording
Paper Size |
Max.
A3 |
| Resolution |
B/W:
200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Colour: 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi |
| Interface |
Ethernet
(10BASE-T/100BASE-TX/1000BASE-T) |
| Colour |
Support
Colour Internet Fax |
| Format |
B/W:
TIFF-F
Colour: TIFF (Conforms to RFC3949 Profile-C) |
Fax
Kit FK-513 (Optional) *
Optional HDD will be needed if MFP does not equip the HDD as standard.
| Communication |
Super
G3 |
| Compatible
Lines |
Public
Switch Telephone Network, Private Branch Exchange,
Fax Communication Line |
| Line
Density |
Ultra
Fine: 600 dpi 600 dpi
Super Fine: 16 dot/mm 15.4 line/mm, 400 dpi 400 dpi
Fine: 8 dot/mm 7.7 line/mm, 200 dpi 200 dpi
Normal: 8 dot/mm 3.85 line/mm |
| Modem
Speed |
2.4
to 33.6 kbps |
| Compression |
MH/MR/MMR/JBIG |
| Sending
Paper Size |
Max.
A3 (Long Length Support: Max.1,000 mm) |
| Recording
Paper Size |
Max.
A3 (Long Length Max. 1,000 mm — following the page division —) |
| Transmission
Speed |
Less
than 2 sec. (A4, V.34, 33.6 kbps, JBIG) |
| Memory |
Shared
with the copier |
| Number
of Abbr. Dials |
2,000 |
| Number
of Program Dials |
400 |
| Number
of Group Dials |
100 |
| Sequential
Multiple Station Transmission |
Max.
600 |
Internet
Fax (Optional) *
Optional Fax Kit FK-513 is required.
| Protocol
Transmission |
TCP/IP,
SMTP |
| Sending
Paper Size |
A3,
B4, A4 |
| Resolution |
200
× 200 dpi, 400 × 400 dpi, 600 × 600 dpi |
| Format |
B/W:
TIFF-F, TIFF-S
Colour: TIFF, PDF |
|

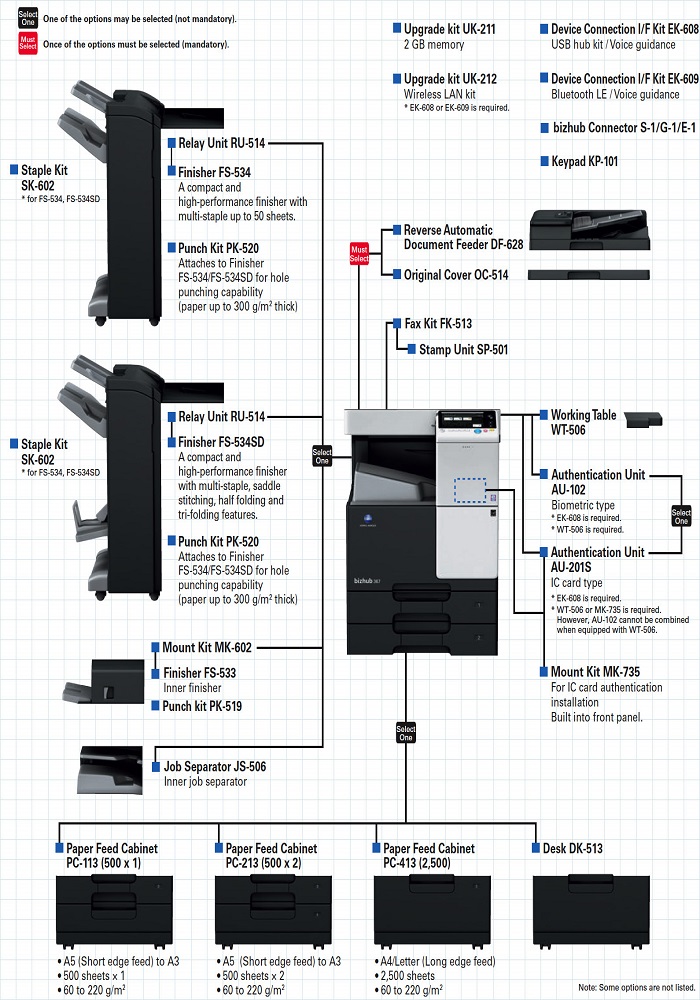

System
Options
|
| |
|
|
|
Digital Copier, Photocopier Machines, Konica Minolta Colour Copier, Printer On Hiring, Printer On Rental Basis, Photocopiers Machine, XEROX Machine Gujarat , XEROX Machine on Rent , Colour Copier Machine, CMYK Production Printing Machine, Copiers, Color Copiers, Colour Production Print Systems, Laser Printers, Photocopiers Machine, digital Colour Copier, digital copier, colour Xerox machine, colour photocopiers, digital xerox machine, digital copier,sales and service of photocopier Machine, sales and service of xerox machine in Vapi, Valsad, Daman, Silvassa, Umargam, Navsari, Gujarat, India.
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
PATEL AUTOMATION |
110, Vardhaman Complex, Nr. Sahara Market, Silvassa Road, Vapi 396195, Gujarat, INDIA.
Tel : 0260 -2424634 / 6544634, Cell : 09825378070, E-mail : sales@patelautomationvapi.com |
|
 |
 |
 |
|
| |
|
|
|
|
|
