Product Overview
The A4 Monochrome MFP Developed to Satisfy Customer Demands
Offering advanced features and high-level device management capabilities with stringent security, the bizhub 42/36 is a smart medium-speed A4 MFP for your entire enterprise, not matter how big or small.
Reduce TCO Across Your Operation
Keeping costs low is a challenge you face every day. The bizhub 42/36 is on your side, delivering comprehensive TCO solutions that save resources and increase efficiency.
Monochrome Printing Helps Cut Costs
Consolidated Management with Colour MFPs

Print and Receive with Mobile Devices Wirelessly
Meet the demands of the rapidly growing mobile market. PageScope Mobile provides a smart bizhub printing environment that lets you print and receive data wirelessly.

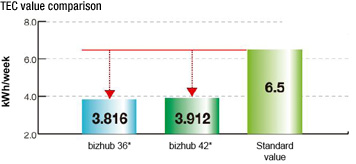

Clean, Quiet Performance for a Better Environment
Reduced power consumption, lower noise levels and other measures show consideration for the earth and the office environment.

Exceptional Image Quality Regardless of Document Type
Achieves high-quality monochrome output of colour documents.
Even when printing colour originals in monochrome, high-quality reproduction of half-tones ensure excellent results for business documents, photos, etc.

High Functionality, High Performance and Expandability to Grow with Your Business
Delivering 100% duplex copy productivity, standard colour scanning and an optional inner finisher, the bizhub 42/36 plays a key role in boosting your office’s productivity.

High Usability in a Stylish Body
Features the shared operability of the bizhub series, making it easy for everyone to use.

Specifications
General Specifications
Product Name bizhub 36/42
Type Desktop
Scan Resolution 600 x 600dpi
Print Resolution 4,800 equiv. x 600dpi (600 x 600dpi x 3 bit)
Memory Capacity 1.5GB
Original Type Sheets, Books (2-page spreads), Objects (up to 3kg)
Max. Original Size A4 or Legal (216mm x 356mm)
Output Size Paper Size Tray 2 / 3: A4, B5, A5
Bypass Tray: A4, B5, A5, B6, A6, Postcard (100mm x 148mm)
Width: 90mm – 297mm, Length: 140 – 356mm
Image Loss Max. 4.2mm or less for top edge, Max. 3.0mm or less for bottom edge,
Max. 3.0mm or less for right/left edges
Warm-Up Time (23°C, at rated voltage) 45 sec. or less (when main power on)
35 sec. or less (when starting from Sleep Mode)
First Copy Time 8.7 sec.*1, ADF 7.9 sec.
Continuous Copy Speed Monoplex 42 cpm / 36 cpm (thick paper ½: 12.5 cpm)
Duplex 42 cpm / 36 cpm
Copy Magnification Fixed Original Size 100.0% ± less than 0.5%
Scaling Up 115.4%, 122.4%, 129.4%, 141.4%, 154.5%, 163.1%, 200.0%
Scaling Down 50.0%, 60.7%, 64.7%, 70.7%, 78.5%, 81.6%, 86.6%
Free Settings Hand-placed copies: 25% – x400%
ADF copies: 25% – x200%
Paper Capacity Main Unit Tray: 500 sheets (80g/m2) x 2 tiers (universal size)
Note: Optional additional 2-tiered
Multi Bypass: 150 sheet, 80g/m2
Paper Weight*2 Main Unit: 60 – 90g/m2, Multi Bypass: 60 – 210g/m2
Multiple Copy 1 – 999 sheets
Output Levels Regular Paper 250 sheets
Thick Paper 10 sheets
OHP Film 1 sheet
Power Requirements AC100V 15A (50/60Hz)
Max. Power Consumption 1.5kW or less
Dimensions [W] x [D] x [H] 558mm x 632mm x 807mm (ADF included)
Max. Space Occupied 1,173mm x 753mm x 1,134mm
[W] x [D] x [H] (with the FS-529 Finisher and bypass tray pulled out)
Weight Approx. 63kg
*1: A4 crosswise, when scanned from platen glass, in magnification, or from main unit tray.
*2: Depending on print environment, print quality may be affected.

ADF Specifications (Standard)
Document Feeding Type Automatic Duplexing Document Feeder
Document Types Monoplex Regular Paper (50 – 128g/m2)
Duplex / Mixed Regular Paper (50 – 128g/m2)
Document Size Monoplex / Duplex A4 or Legal (216mm x 356mm) [Max. 1,000mm in Fax Mode]
Mixed Mixed with legal size only
Document Stacking Capacity Monoplex/Duplex: Max. 50 sheets or less (80g/m2)
Document Exchange Speed 30 sheets (A4), 31 sheets (letter)
Power Requirements Shared with main unit

Printer Specifications
Type Embedded
Print Speed Shared with main unit
Resolution 4,800 equiv. x 600dpi (600 x 600dpi x 3 bit)
Memory Capacity 1.5GB
PDL PostScript 3 compatible (3016), PCL6 (XL3.0), PCL5e/c,
Internal Fonts PCL PDF1.7/JPEG/TIFF/XPS1.0 Direct print
PS 80 European fonts
Protocol 137 European Type1 fonts
Supported OS PCL TCP/IP, IPX/SPX (NDS compatible), SMB (NetBEUI), UDP, AppleTalk
Windows XP / XP x64 / Vista / Vista x64 / 7 / 7 x64 / Server2003 /
PS Server 2003 x64 / Server2008 / Server2008 x64 / Server 2008 R2
Windows XP / XP x64 / Vista / Vista x64 / 7 / 7 x64 / Server2003 /
Server 2003 x64 / Server2008 / Server2008 x64 / Server 2008 R2
Mac OS (10.2.8, 10.3.9, 10.4, 10.5, 10.6) [Includes Intel Macs]
XPS Windows Vista / Vista x64 / 7 / 7 x64 / Server2008 / Server2008 x64 /
Server 2008 R2
Interface Ethernet (1000Base-T/100Base-TX/10Base-T)
USB 2.0

Scan Specifications
Type Full-Colour Scanner
Scanning Size Max. A4 or Legal
Scanning Resolution 150/200/300/600dpi
Scanning Speed 30spm (A4, 300dpi), 31spm (letter, 300dpi)
Interface Ethernet (1000Base-T/100Base-TX/10Base-T)
Protocol TCP/IP (FTP, SMB, SMTP, WebDAV, WSD-Scan)
Output Format TIFF, PDF, Compact PDF, JPEG, XPS

Fax Specifications (Optional FK-509)
Communication ECM / Super G3
Compatible Lines Subscription phone line (PSTN), PBX
Sending Resolution Standard: 200 x 100dpi (8dot/mm x 3.85line/mm )
Fine: 200 x 200dpi (8dot/mm x 7.7line/mm )
Super Fine: 400x400dpi (16dot/mm x 15.4line/mm)
Sending resolution depends on the capabilities of the recipient’s fax device.
Sending Speed 2.4kbps – 33.6kpbs
Compression MH, MR, MMR, JBIG
Sending Paper Size Platen Glass: Max. A4, Legal
ADF: 215.9mm x 1,000mm
Recording Paper Size Max. A4, Legal
Documents exceeding 1,000mm cannot be received.
Following page division settings, recorded documents up to 1,000mm are
Sending Speed recorded.
Abbr. Dials 3 pages / sec.
Programme Dials 2,000 (max. number of recipient contacts)
Group Registration 400 (max. number of programme registrants)
Simultaneous Recipients 100 (max. number of group registrants)

Internet Fax Function Specifications (Optional) *Recipient’s fax be must be compliant with ITU-T T.37 and W-NET FAX
Protocol Internet Fax (simple mode9, TCP/IP, SMTP, POP3)
Sending Paper Size A4
Resolution Sending Standard: 200 x 100dpi
Fine: 200 x 200dpi
Receiving 200 x 100dpi, 204 x 98dpi (80 x 38.5dot/cm)
200 x 200dpi, 204 x 196dpi (80 x 377dot/cm)
200 x 300dpi
200 x 400dpi, 204 x 391dpi (80 x 154dot/cm)
400 x 100dpi, 408 x 391dpi (160 x 154dot/cm)
Data Format Monochrome TIFF
Registered Recipients Max. 2,000
Simultaneous Recipients Max. 500
Data Compression Formats Sending: TIFF-S (MH), Receiving: TIFF-S (MH), TIFF-F (MR/MMR)

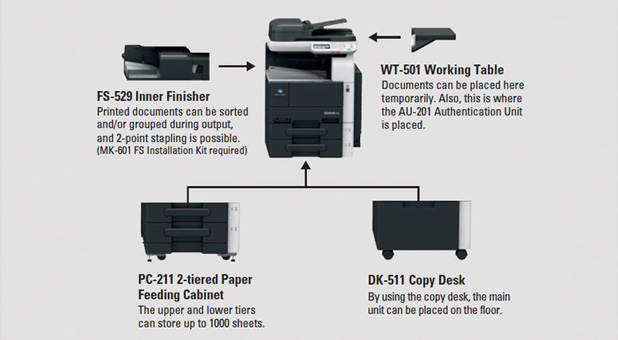

System Options
