Product Overview
A3 monochrome MFP boosts productivity and efficiency while reducing costs and environmental burden
A feature-rich array of office functions in a compact body.
bizhub 215/195 saves electricity and lets you freely share data scanned in colour via e-mail and USB memory. This small unit fits in anywhere and makes the perfect complement to existing colour MFPs. Boost office productivity and efficiency with environmentally friendly bizhub 215/195.
Save crisp, highly detailed documents in colour.Low-cost output in monochrome.
bizhub 215/195 is a monochrome MFP that minimises output costs while offering colour-scanning functionality. Use it to store documents as digital data and fully leverage its outstanding data control capability.
Select colour or monochrome output according to your needs.
When colour output is required, simply scan and temporarily save a document on bizhub 215/195,then print it using a colour printer in the network.

Share information faster than ever.Scan and share without a PC or server.
A wide range of functions let you move data rapidly: Scan to USB memory saves documents quickly on USB flash drives; Scan to FTP is great for sharing large volumes of data; Scan to PC allows you to send data directly to a shared folder on a client PC; and Scan to Email sends a document directly to e-mail addresses selected using the control panel.

Fast duplex scanning and duplex printing reduce waiting and save power.
Duplex scanning and printing increase scan and print speeds, vastly reducing workloads and costs.
• Maintain efficiency while saving power with warm-up times of 15 sec. or less.
• Eliminate waiting with copy times of 6.5 sec. or less.
Rationalise devices for a neater office and improved efficiency.

Reduce CO2 and TCO.Plant-based toner with low-temperature fixing.
Simitri HD toner with biomass contains small, uniform toner particles that fix at low temperatures, thus saving power. This reduces both environmental impact and TCO.

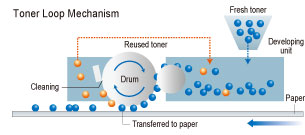

Eliminate waste to reduce costs.Designed for zero-waste as regards toner.
Other MFPs waste approximately 5 to 10% of toner from a new cartridge. bizhub 215/195′s advanced toner loop mechanism eliminates waste by collecting and reusing toner that is not transferred to paper. This lowers wastage to essentially zero, helping to save resources.

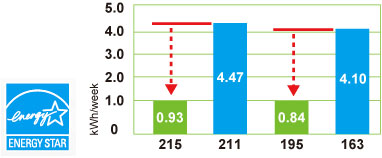

Significantly less environmental impact and power fees.TEC* reduced by approximately 80%.
Compared to bizhub 211/163, this new bizhub reduces TEC by approximately 80%, significantly easing environmental impact and reducing TCO. bizhub 215/195 is also Energy Star certified.
* TEC (Typical Electricity Consumption) is a value based on a measurement method defined by the International ENERGY STAR program.

Comfortable, easy-to-view LCD monitor assures superb usability.
Duplex copying provides two-in-one efficiency.
Comfortable, easy-to-view LCD monitor assures superb usability.
Duplex copying provides two-in-one efficiency.
Specifications
General Specifications
Product Name bizhub 215/195
Type Desktop
Reading Resolution 600dpi x 600dpi
Writing Resolution 600dpi x 600dpi
Memory Capacity 128MB
Gradation 256 gradations
Original Type Sheet, book, 3-dimensional object
Max. Original Size A3 or Ledger (11″x17″)
Copy Size Metric: A3 – A5
Inch: Ledger (11″x17″) – Invoice (5.5″x8.5″)
Image Loss 4 mm at each edge (top/ bottom/ right/ left edge)
Warm-Up Time 1. Less than 15 sec
First Copy Out Time 2. Less than 6.5 sec
Copy Speed (A4/Letter Crosswise) bizhub 215: 21ppm 3. bizhub 195: 19ppm
Copy Magnification Fixed Ratio Metric: 0.25/0.50/0.70/0.81/1.00/1.15/1.41/2.00/4.00
Inch: 0.25/0.50/0.64/0.78/1.00/1.21/1.29/2.00/4.00
Zoom Ratio set by Up/Down key 25~400%
Paper Capacity Max: 6-way, 1350 sheets Main Body Standard:250 sheet Universal tray:1tray
Bypass Tray MB-505 100 sheet Bypass Tray *Depend on each distribution
Additional cassette PF-507 250 sheet Additional Cassette: Max.4 trays
Paper Weight Main Body/Bypass Tray MB-505 64 – 157g/m2
Additional cassette PF-507 64 – 90 g/m2
Multi Copy Setting 1 – 999 pages
Max. Power Consumption 1300W (127V only:1350W)
Dimensions [W] x [D] x [H] 570 x 570 x 458*mm * To the face of platen glass
570 x 570 x 488**mm ** To the top of original cover
Weight 26.5 kg (Excluding TC/Developer/Original Cover/Bypass unit)
Space Requirements [W] x [D] Standard configuration: 570 x 570 mm
With Bypass tray: 928 x 570 mm
Max required space incl. maintenance space: 999 x 971 mm*
*When Bypass tray extended.
When Paper Feed Tray pulled out. (Slide length: 397mm)
Application Software PageScope Net Care Device Manager & Plug-in
LSU (Local Setting Utility)
Warm-up time may vary depending on the operating environment and usage.
The time required to start printing when both the main power and sub-power switches are turned from OFF to ON. (23°C, std. voltage)
The time required to start printing when the main power switch is ON and the sub-power switch is turned from OFF to ON.
(23°C, std. voltage)
2 A4/Letter crosswise, full size, using the first tray, scanning from the original glass surface.
3 23 ppm from 2nd Feed Cassette.

Print Specifications (Standard)
Type Embedded
Print Speed A4 bizhub 215: 21ppm , bizhub 195: 19ppm
Letter bizhub 215: 20ppm , bizhub 195: 19ppm
Resolution 600dpi x 600dpi
Support OS Server:
Windows 2003Server / 2008Server / 2008ServerR2
Windows 2003Server x64 Edition / 2008Server x64 Edition
Client:
Windows XP / Vista / 7
Windows XP / Vista / 7 x64 Edition
Interface Standard: USB2.0
NC-504(Option card): Ethernet 10Base-T/100Base-TX

Print Specifications (Optional IC-209) * Optional Video Interface Kit MK-733 is required.
Type PCL controller incl. network interface card
Print Speed A4 bizhub 215: 21ppm , bizhub 195: 19ppm
Letter bizhub 215: 20ppm , bizhub 195: 19ppm
Resolution 1200 or 600 x 600dpi
Language PCL6/5e
Support OS Server:
Windows 2003Server / 2008Server / 2008ServerR2
Windows 2003Server x64 Edition / 2008Server x64 Edition
Client:
Windows XP / Vista / 7
Windows XP / Vista / 7 x64 Edition
Interface Ethernet 10Base-T/100Base-TX

Scan Specifications
Type Colour scaner
Supported Size Standard: Max. A3 or Ledger (11″x17″)
DF-625 (Option ADFR): Max. A3 or Ledger (11″x17″)
Interface Ethernet 10Base-T/100Base-TX (Option card: IC-209 or NC-504)
USB2.0 (Standard)
USB Host (Standard: bizhub 215 only)
Scan Function TWAIN / WIA: Real Time Mode(Pull)
Scan to USB memory(Standard; bizhub 215 only)
Network Scan (Option card: IC-209 or NC-504) :
Scan To FTP, Scan To PC (SMB), Scan To E-mail
Network TWAIN
Driver TWAIN / WIA driver
Data format TIFF, PDF, JPEG

Fax Specifications (Optional FK-510)
Transmission Standard/ Communication Mode ECM/G3
Transmission Speed 2.4kbps – 33.6kbps
Data Compression MH, MR, MMR, JBIG
Transmission Time Approx. 3 sec (A4, V.34, 33.6kbps, JBIG)
Transmission Size Scanner: Max. A3
Option DF-625: Max. (W x L) 297 x 1000mm
Recording Size Max. A3 (Max 1000mm, printed according page partition setting)
Resolution 203 x 196dpi, 203 x 392 dpi , 406 x 392dpi
Abbreviated.Dial 250
One Touch.Dial 32
Program Dials 4
Sequential Multiple Station Transmission Max. 255
Driver PC-FAX driver

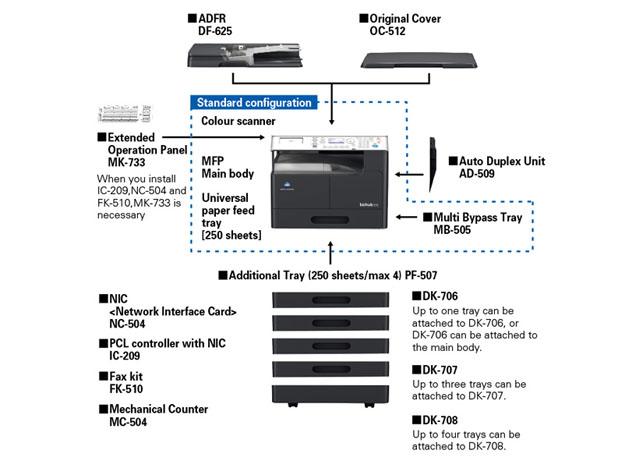

System Options
